IMX e4090 Multi-Screen IPTV Video Transcoder Processor

Tailoring Video Content for Diverse Screens

Overview

The IPTV Matrix Asia IMX e4090 hardware-based video processor excels in transforming digital or analog video feeds into IP video streams. Customized for OTT IPTV streaming, the e4090 ensures the delivery of top-tier video quality at remarkably low bitrates.

Designed for exceptional performance and value, the hardware-based IMX e4090 video encoder empowers users with flexibility. Opt for the standard definition version, and you can effortlessly upgrade to HD streaming in the future. The IMX e4090 SD/HD video encoders facilitate the transmission of standard definition (480i/576i) as well as high definition 720p, 1080i, and 1080p videos over IP, efficiently handling bandwidth limitations through IPTV Matrix Asia’s MatrixCast streaming technology.

Collaborating seamlessly with IPTV Matrix Asia's IMX i2410 and IMX X1i live MatrixCast streaming servers, the IMX e4090 series live video encoder serves the purpose of streaming live videos over private IP networks or the Internet. The IMX e4090 video processor is strategically optimized to deliver exceptional video quality while maintaining the lowest possible bitrates for Internet streaming.

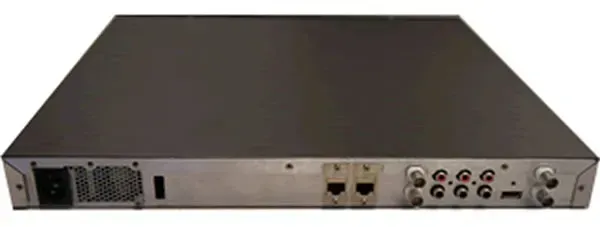

Input and Output Ports

Video Inputs -HD-SDI (SMPTE292M), SD-SDI (SMPTE 259M-C) with EDH error detection and correction, HDMI and Component(YPbPr)
Audio Inputs – Embedded in SDI, HDMI. SPDIF and Analog stereo RCA.
Output Interface – 2x Gigabit Ethernet ports, 1x Ethernet dedicated to service streaming, 1x Ethernet Out-of-band, dedicated to management, and 1x DVB-ASI (75 Ohm BNC connector)

Features:

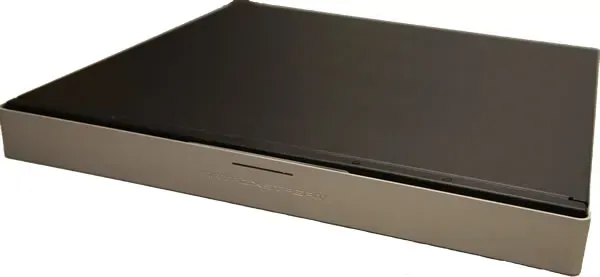

Low-profile 1U rack-mounted design for reduced cost-per-channel.
The IMX e4090 SD/HD encoder is tuned up the newest H.264/AVC video up to 1080p resolution. Mpeg 4 AAC audio formats/AC3 is also supported.
MatrixCast(R) video processing engine gives the highest picture quality available today at the lowest bitrate even during fast movement or night scenes. The IMX e4090hd also support advance features such as close caption*.
Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.
IMX e4090 encodes live high definition H.264 video at resolutions of 480i, 576i, 720p, 1080i and 1080p.
No noise low power consumption eco-green design.
Embedded multi-chip SOC architecture for ultra high performance and reliability.
Supported frame rates 480i, 576i, HD 720p, HD 1080i and HD 1080p.
Dual Gigabit Ethernet LAN ports provide additional performance and redundancy. Separate ethernet ports for service streaming and out-of-band management.
Management by front panel with LCD/Keypad, embedded Web server configuration and SNMP (MIB v2C) with remote SNMP supervisor.
Work Seamlessly with MatrixStream Server Series – IMX e4090 video encoders are optimized to support MatrixStream’s MatrixCast Streaming protocol over the Internet. This means IPTV providers can stream broadcast quality high definition videos over the Internet.
* Available at a future date via firmware update

Content Security

The IMX solution solves the online piracy problem by creating an easy method to protect and securely distribute digital content on the internet. The IMX solution provides sophisticated reporting and tracking so content providers can develop a one-to-one relationship with their user base. Features include:
