High Temperature Gasket

Advanced Seal Reliability with a High Temperature Gasket Seal

Designed to perform under extreme pressure and heat, a high temperature gasket maintains sealing integrity where conventional materials fail.

Engineered for durability and thermal resistance, it supports long-term performance in demanding industrial environments.

Call Us

Request a Quote

The Assureaseal™ Cathodic Isolation Gasket is manufactured for vital service flange sealing and electrical isolation. Designed to function as a high temperature flange gasket, it is comprised of a new age, very high compression strength glass epoxy material, CBS 3111. This material has been developed proprietarily for Step-Ko Products LLC to withstand demanding operating environments.

Assureaseal™ can be used in extreme pressurized flanges and in extreme heat that would deteriorate most other materials. The gasket is manufactured from a composite material to prevent the internal buildup, causing an electrical cross arc. These gaskets can provide excellent seal ability in flanges from ANSI 150# to ANSI 2500# flanges. In extreme heat applications, this CBS3111 material can withstand temperatures exceeding 400°F while maintaining structural stability.

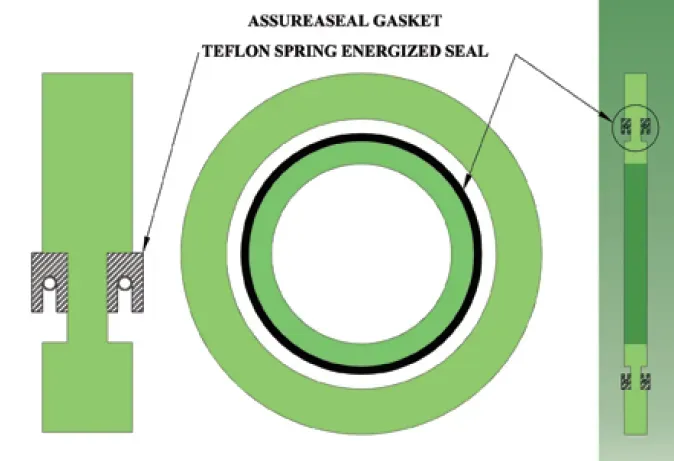

The Assureaseal™ Cathodic Isolation Gasket incorporates a glass-reinforced, spring-energized Teflon® seal with a 316 Stainless Steel internal coil spring. These seals allow constant pressure to be applied with minimal cold flow, ultimately providing exceptional seal integrity and effective high pressure flange insulation for superior reliability in critical systems.

Engineered Reliability with a High Temperature Gasket for Extreme Service

A properly engineered high temperature gasket is critical in applications where heat, pressure, and mechanical stress converge. Industrial flange connections exposed to elevated temperatures demand materials that resist thermal degradation while maintaining seal integrity. Advanced composite structures and reinforced sealing elements allow these gaskets to perform where conventional materials fail.

Built for Demanding Environments with High Temperature Gasket Sealant

An advanced insulation flange kit ensures controlled electrical separation at flanged joints without sacrificing sealing integrity. These kits are manufactured using materials with high dielectric strength and low water absorption to perform consistently in demanding environments. In applications where corrosion risks are elevated, an isolating flange kit becomes a vital component of a long-term protection strategy. Proper isolation supports safety, minimizes maintenance, and strengthens overall system performance. When correctly specified, these kits create a stable barrier that prevents stray current interference across the connection.

Performance Advantages of a High Temperature Flange Gasket

A high temperature flange gasket is specifically developed to maintain sealing integrity in elevated heat environments where pressure retention is critical. It combines mechanical strength with thermal resistance to ensure stable flange connections.

Maintains structural integrity under sustained heat exposure
Reduces risk of leakage during thermal expansion cycles
Provides consistent sealing across ANSI pressure classes
Resists material breakdown in extreme operating temperatures
Supports electrical isolation in sensitive applications

This combination of heat tolerance and sealing precision makes it ideal for high-demand industrial systems.

Thermal Stability and High-Pressure Flange Insulation Working Together]

In extreme service applications, high-pressure flange insulation plays a vital role in maintaining both mechanical and electrical integrity. Isolation between flange faces prevents unwanted current transfer while preserving seal performance under pressure. The insulation materials must withstand compression forces without fracturing or degrading. Properly engineered assemblies help eliminate conductive paths that contribute to corrosion. By combining thermal resistance with dielectric separation, flange systems achieve enhanced durability and operational safety.

Advanced Material Engineering Behind Every High Temperature Gasket

A dependable high temperature gasket relies on advanced composite materials capable of handling intense thermal stress. Reinforced sealing elements and spring-energized designs help maintain consistent pressure across the flange surface.

Engineered for minimal cold flow under load
Designed to withstand temperatures exceeding 400°F
Manufactured from high-compression glass epoxy materials
Compatible with stainless steel reinforced sealing components
Developed for longevity in severe industrial conditions

These characteristics ensure reliable sealing performance in both static and cyclic heat environments.

Precision Manufacturing and Quality Assurance Standards

Performance begins with disciplined manufacturing processes and material verification. Step-Ko Products applies strict quality control standards to ensure dimensional accuracy and dielectric consistency across every sealing assembly. Each product is designed for compatibility with demanding industrial specifications and pressure classes. Through controlled production and rigorous inspection, durability and reliability remain central priorities.

FAQs

1. What materials are commonly used for extreme heat flange sealing applications?

High-compression composites, reinforced glass epoxy, and spring-energized sealing elements are often selected to provide strength, thermal resistance, and long-term durability.

2. How do thermal cycles affect flange sealing performance?

Repeated heating and cooling can cause expansion and contraction in metal components. Properly engineered sealing elements compensate for this movement to prevent leakage.

3. Why is electrical isolation important in high-pressure systems?

Isolation helps prevent stray current transfer between metal components, reducing corrosion risk and maintaining system integrity.

4. Can sealing assemblies handle both heat and pressure simultaneously?

Yes, they are engineered to withstand significant internal pressures while maintaining structural stability.

5. What temperature ranges can modern industrial gaskets withstand?

Depending on material composition, some assemblies are engineered to perform at temperatures exceeding 400°F while maintaining structural stability.

6. How does spring-energized sealing improve reliability?

Spring-energized components apply a consistent sealing force, compensating for material movement and reducing the risk of leakage over time.

7. How do you select the correct sealing configuration for extreme service conditions?

Selection depends on flange size, pressure class, operating temperature, and environmental factors. Reviewing technical specifications ensures compatibility and performance longevity.
